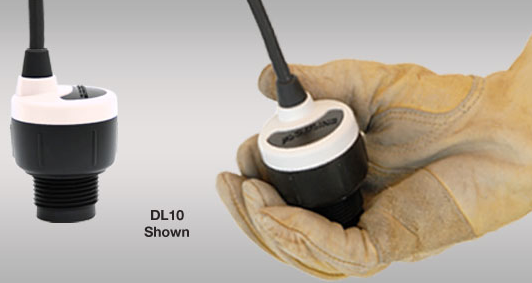

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2" (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.
Features
Ø Continuous non-contact level measurement up to 49.2" (1.25m)
Ø 4-20 mA output for longer signal distances up to 1000' (300m)
Ø Configuration is fast and easy via WebCal software and USB adapter
Ø Narrow 2" beam width and short 2" dead band optimized for small tanks
Ø PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
Ø Automatic temperature compensation for accurate measurement
