XYR 6000 Wireless Transmitter Gauge Pressure

Building upon the tremendously successful ST 3000 series transmitter line, Honeywell brings simple, safe and secure wireless technology to its measurement portfolio with the XYR 6000 Series Wireless Transmitters as part of Honeywell’s OneWireless solution.

XYR 6000 wireless transmitters enable customers to obtain data and create information from remote and hazardous measurement locations without the need to run wires, where running wire is cost prohibitive and/or the measurement is in a hazardous location. Without wires, transmitters can be installed and operational in minutes, quickly providing information back to your system.

Typical applications for the XYR 6000 GP transmitters include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries – any location where accuracy and reliability are crucial to safe, economical operation.

Honeywell’s cost-effective XYR 6000 wireless GP transmitters lead the industry in reliability and stability:

  • Stability = +/-0.015% per year

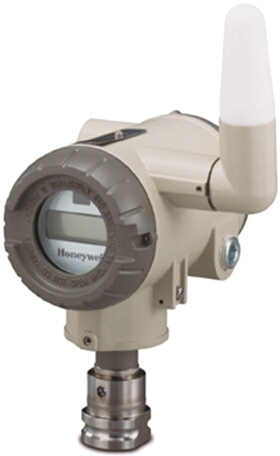

title























Features:

  • Six common models of dual-head and in-line gauge pressure transmitters from 500 psi to 10,000 psi are available for application.
    • STGW944   0 to 500 psi       0 to 35 bar
    • STGW94L   0 to 500 psi       0 to 35 bar
    • STGW974   0 to 3000 psi     0 to 210 bar
    • STGW97L   0 to 3000 psi     0 to 210 bar
    • STGW98L   0 to 6000 psi     0 to 415 bar
  • Integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
  • Unique piezoresistive sensor automatically compensates input for temperature.  Added “smart” features include configuring lower and upper range values and selecting preprogrammed engineering units for display.
  •  Wireless capabilities mean significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.
  •  XYR 6000 wireless transmitters send information to a multinode or series of multinode s creating a MESH infrastructure.
  • Wireless System Gateways (WSG) provide the path to bring that information into Experion PKS or any other control system wirelessly via OPC client or Modbus/TCP.
  • Each multinode accepts signals from up to 20 wireless transmitters reporting at 1 second, and up to 400 transmitters reporting at slower rates. Up to 20 multinode s can be implemented in the same infrastructure.
  • Transmitter power is supplied by two “D” size lithium batteries with an expected lifetime of up to ten years.  Transmitter range with the integral antenna is 1000’ (305 m) under ideal conditions.
  • Optional remote high gain antennas can significantly increase coverage



Documentation:

XYR6000 Wireless Gauge Pressure Datasheet
