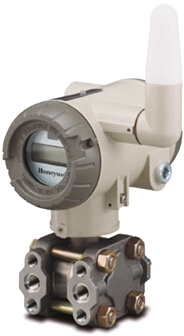

XYR 6000 Wireless Differential Pressure Transmitters

Building upon the tremendously successful ST 3000 series transmitter line; Honeywell brings simple, safe, and secure wireless technology to its measurement portfolio with the XYR 6000 Series Wireless Transmitters.

The XYR 6000 wireless transmitters are part of Honeywell’s OneWireless Solution.

Measurement and information without wires!  XYR 6000 wireless transmitters enable customers to obtain data and create information from remote and hazardous measurement locations without the need to run wires, where running wire is cost prohibitive and/or the measurement is in a hazardous location.  Without wires, transmitters can be installed and operational in minutes, quickly providing information back to your system.

The XYR 6000 Wireless Differential Pressure Transmitter can be used with any primary flow element to provide proven, repeatable flow measurement.

Honeywell’s cost-effective XYR 6000 Wireless DP transmitters lead the industry in reliability and stability:

  • Stability = +/-0.015% per year

alt

























Features:

  • Three most common ranges of differential pressure transmitters from 400” H2O to 3000 psi are available for application.

    • STDW924         0 to 400 inH2O  0 to 1,000 mbar
    • STDW930         0 to 100 psi       0 to 7,000 mbar
    • STDW974         0 to 3000 psi     0 to 210,000 mbar
  • Wireless communications dramatically reduces installation costs
  • Integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
  • Unique piezoresistive sensor automatically compensates input for temperature and static pressure.  Added “smart” features include configuring lower and upper range values and selecting preprogrammed engineering units for display.
  • Wireless capabilities mean significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.
  • XYR 6000 wireless transmitters send information to a multinode or series of multinode s creating a MESH infrastructure.
  • Wireless System Gateways (WSG) provide the path to bring that information into Experion PKS or any other control system wirelessly via OPC client or Modbus/TCP.
  • Each multinode accepts signals from up to 20 wireless transmitters reporting at 1 second, and up to 400 transmitters reporting at slower rates. Up to 20 multinodes can be implemented in the same infrastructure.
  • Transmitter power is supplied by two “D” size lithium batteries with an expected lifetime of up to ten years.  Transmitter range with the integral antenna is 1000’ (305 m) under ideal conditions.
  • Optional remote high gain antennas can significantly increase coverage



Documentation:
